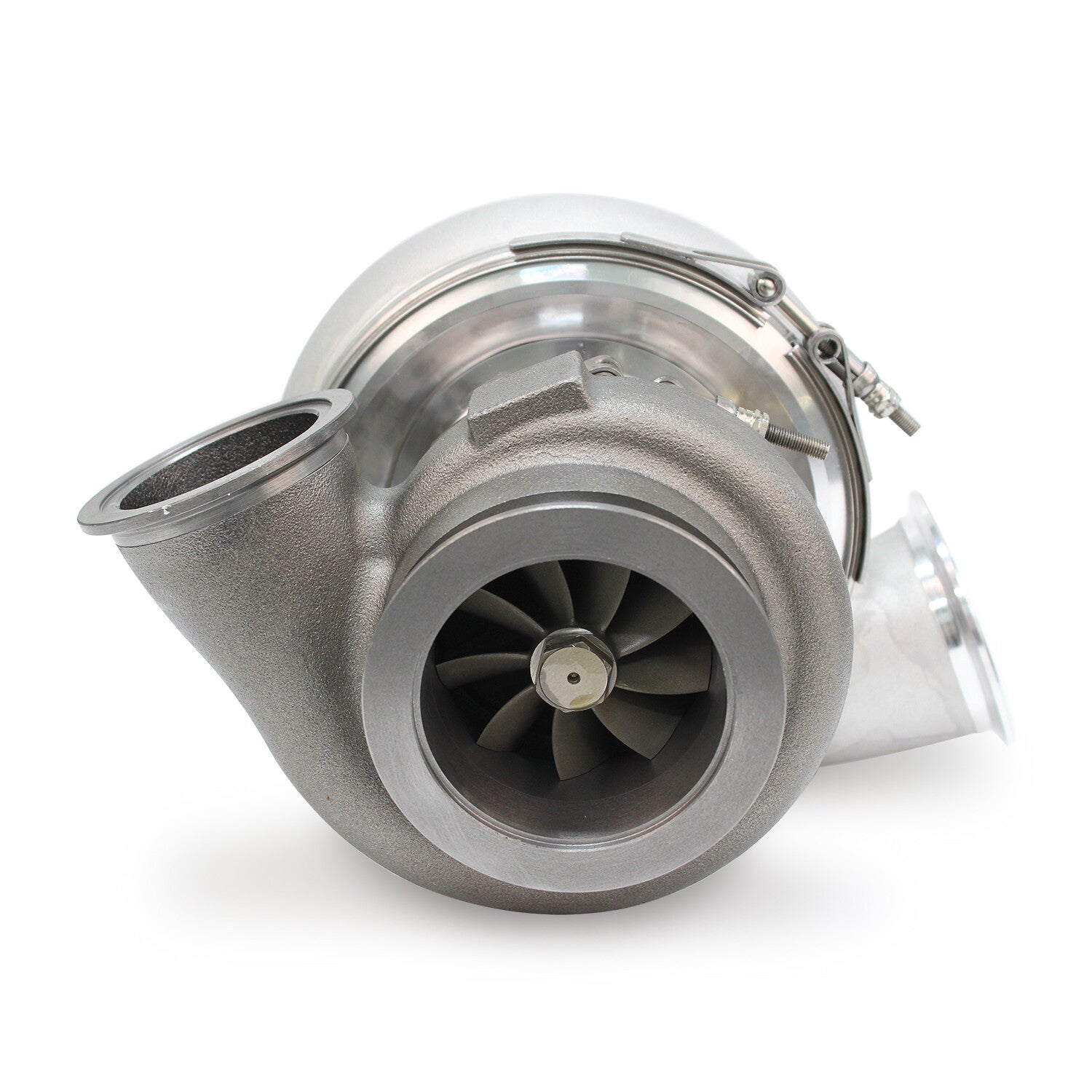

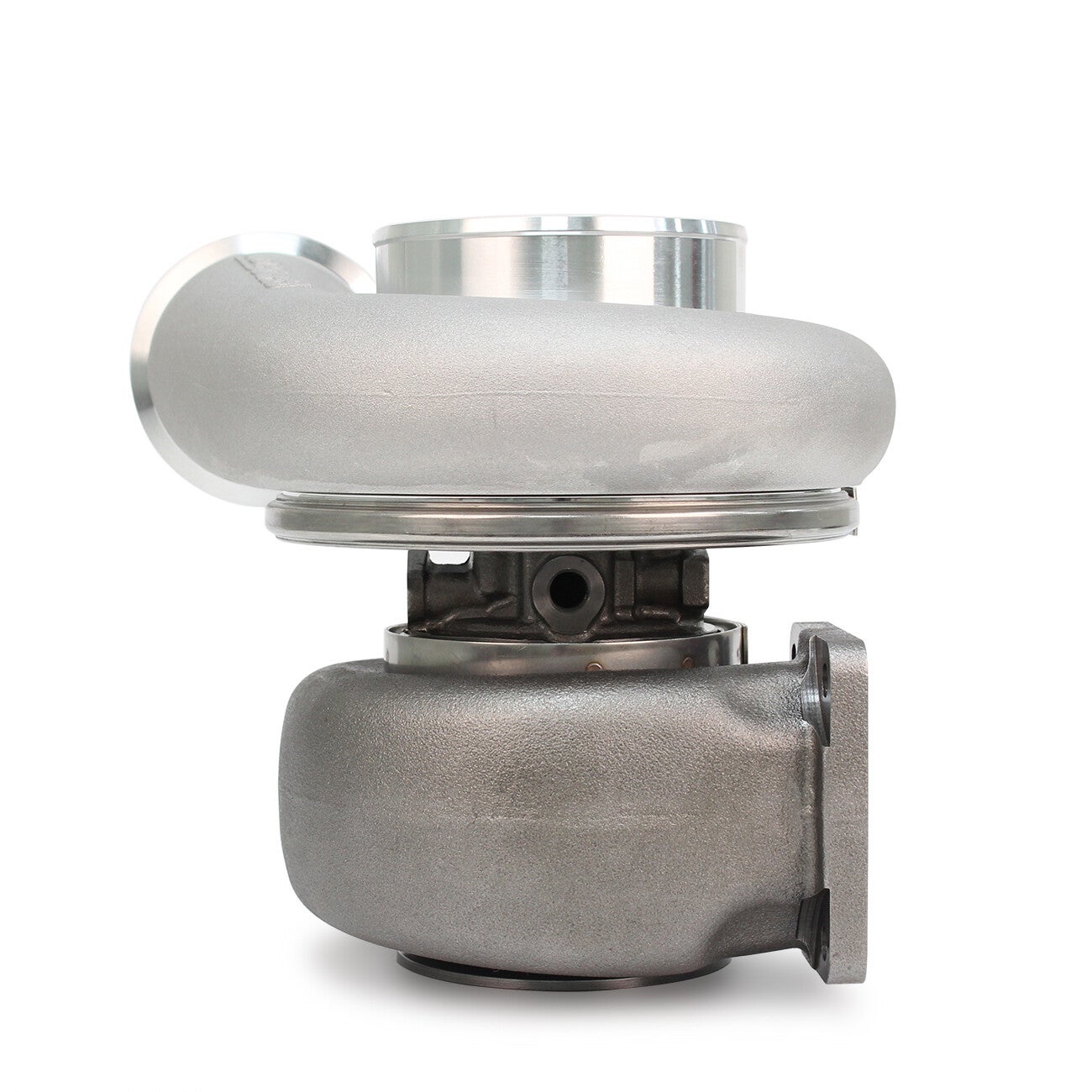

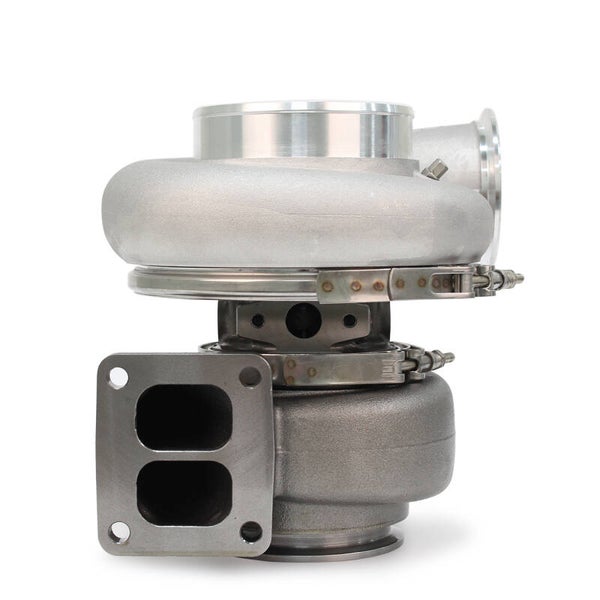

PSR G45-1500 Dual Ball Bearing Turbo (upto 1500HP)
€2,210.00
Item number:
102145201
PSR G45-1500 Compact Dual Ball Bearing Turbo (upto 1500HP)
This PSR Turbo G45-1500 Dual Ball Bearing Turbo. It can handle upto 1500HP.
- Compressor Wheel: 76.6*109.2mm
- Turbine Wheel: 89*81.6mm
- Compressor Inlet: 5″ Hose
- Compressor Outlet: 3″ V-Band
- Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
- Turbine Outlet: 3.5″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- 8 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
Description
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 13 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with super core
- 8 Options in Turbine Housing
Compressor Housing Options:
- Standard
Turbine Housing Options:
- T4 Open 1.15A/R
- T4 Divided 1.01A/R
- T4 Divided 1.15A/R
- T4 Divided 1.28A/R
- T4 Divided 1.44A/R
- Dual Vband 1.01A/R
- Dual Vband 1.15A/R
- Dual Vband 1.28A/R
