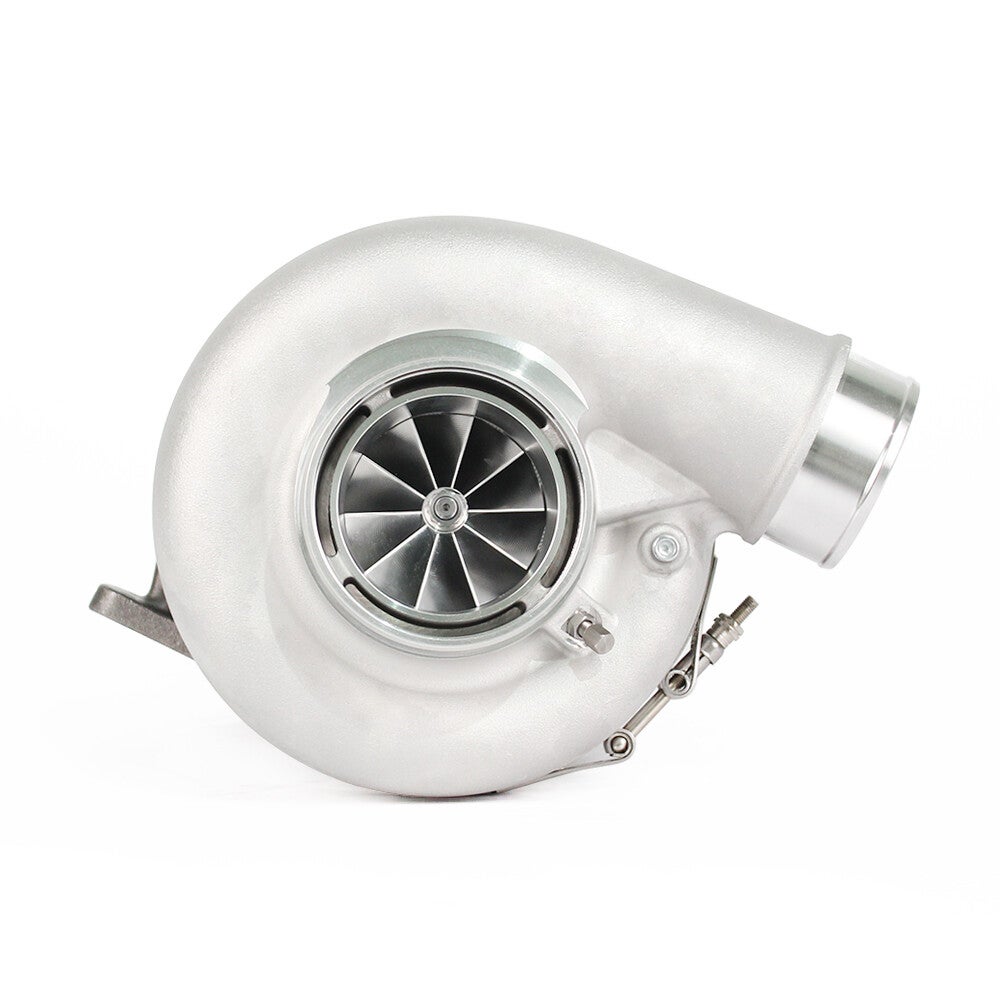

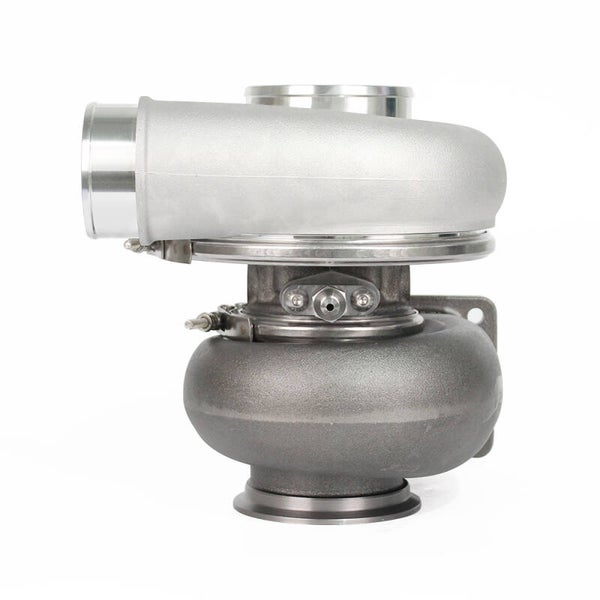

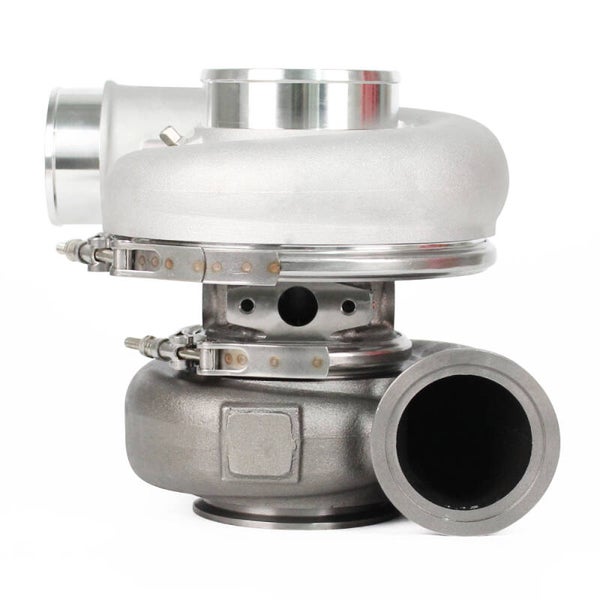

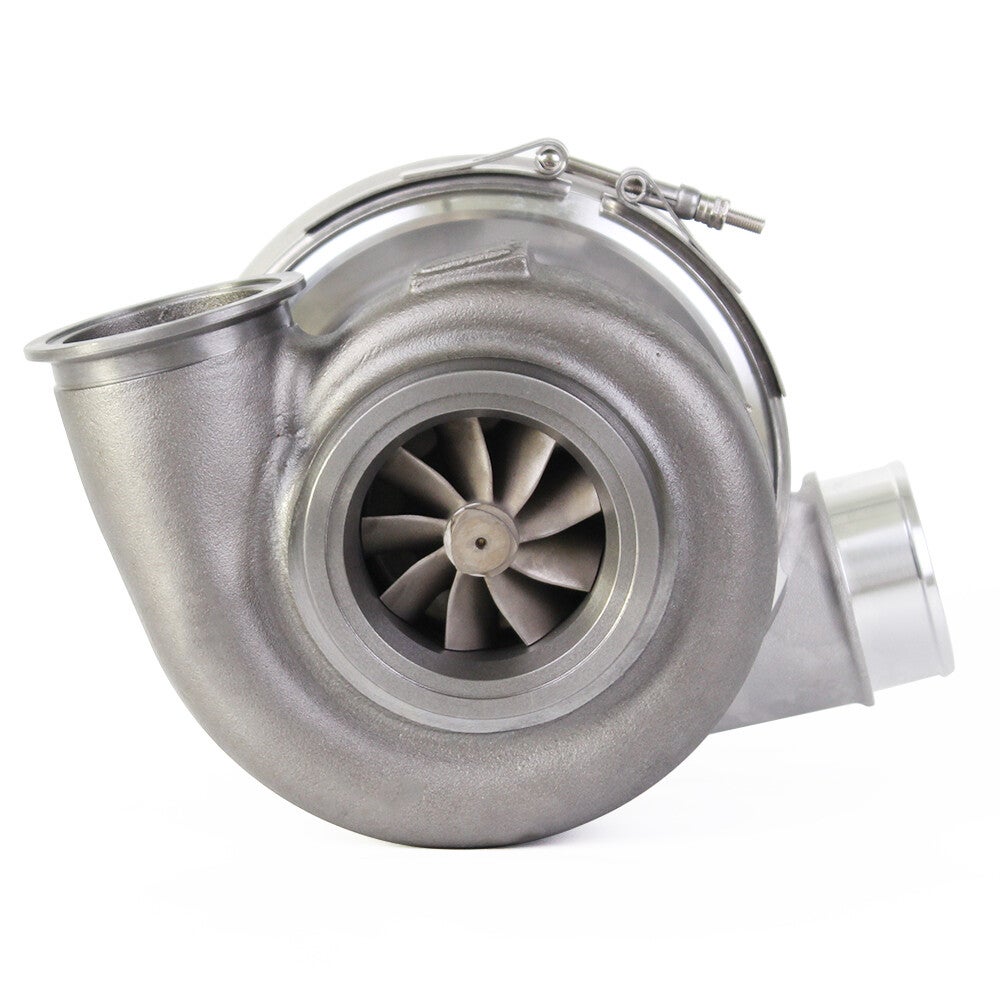

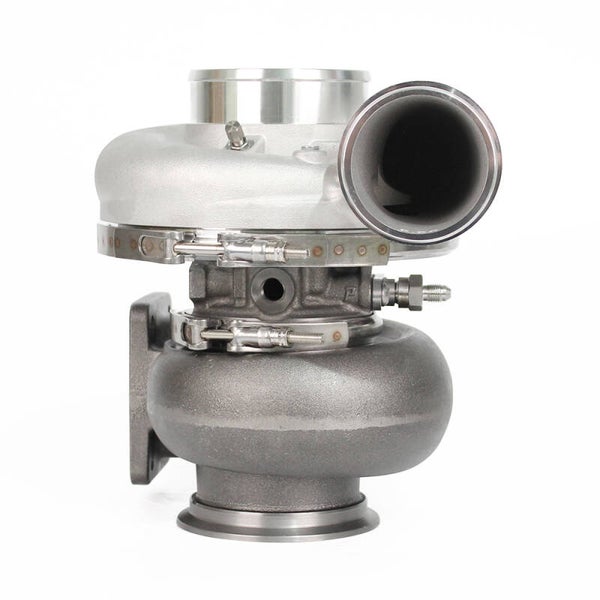

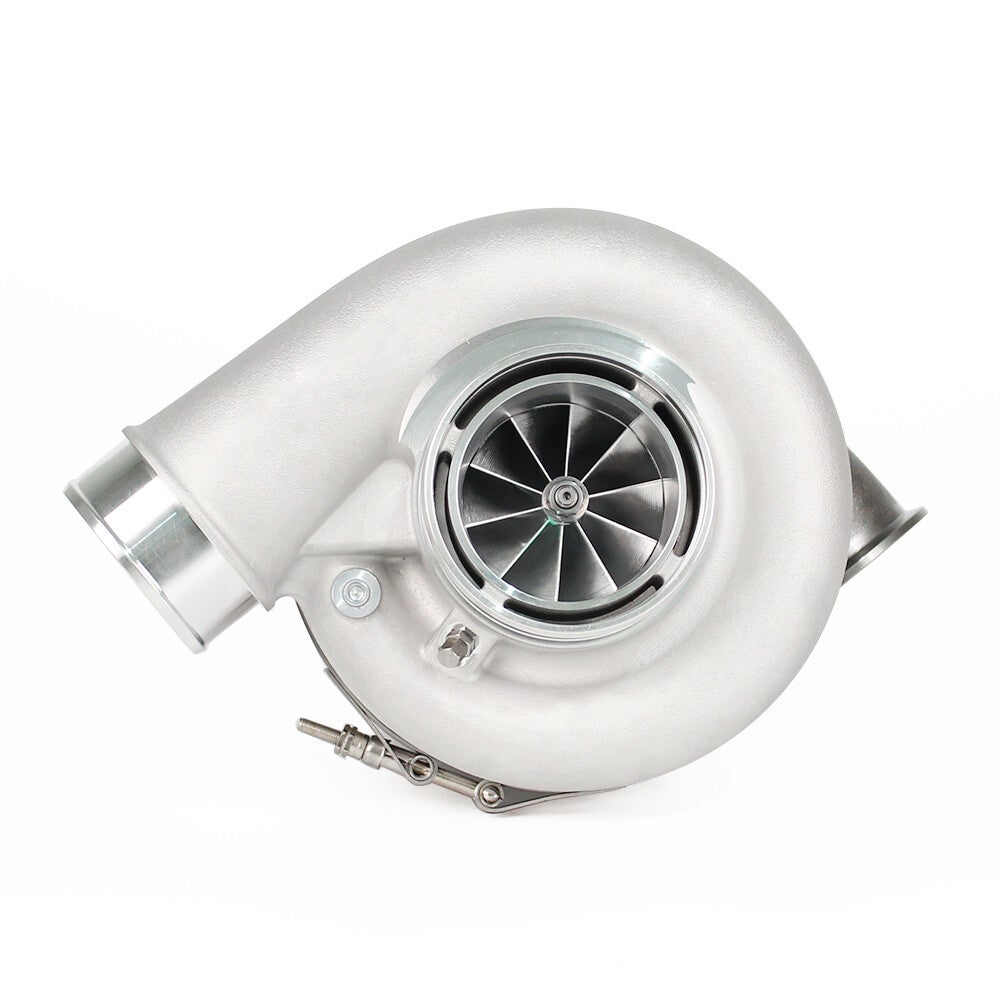

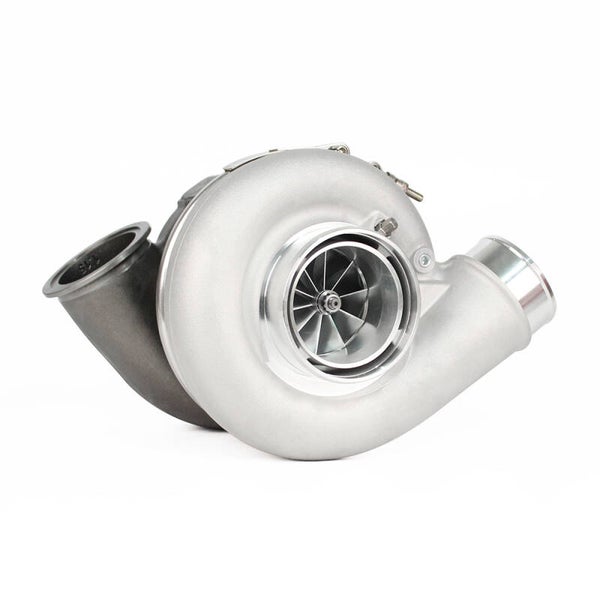

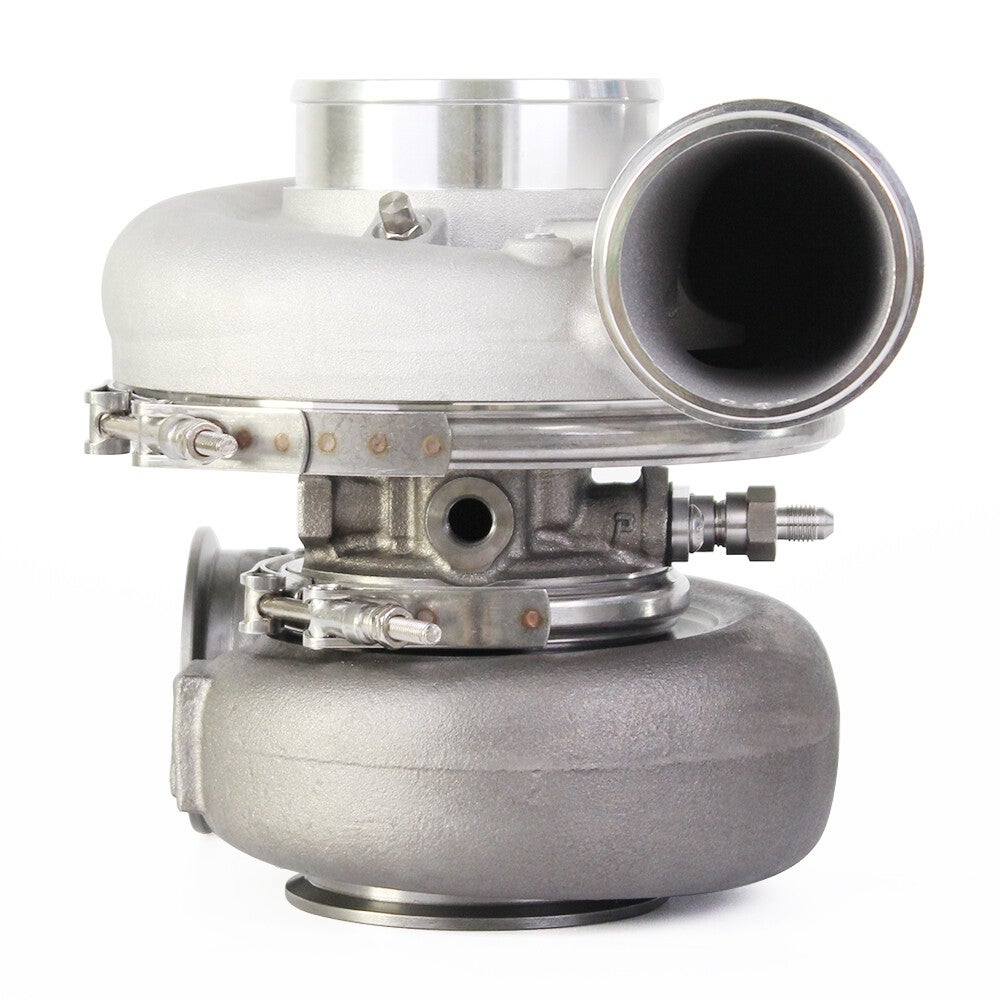

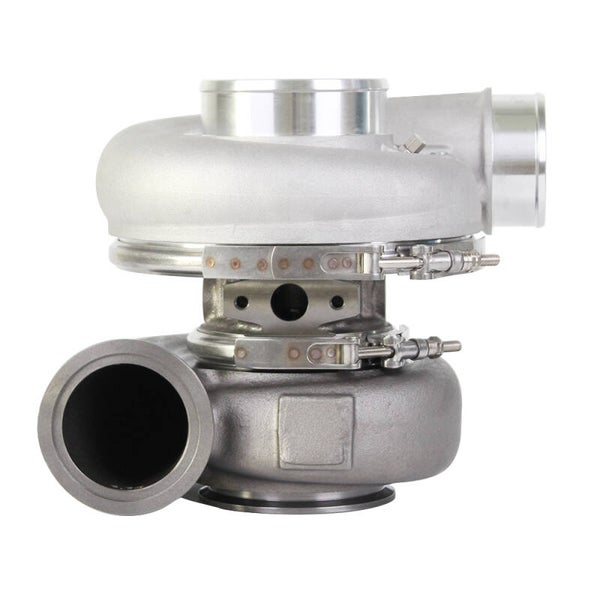

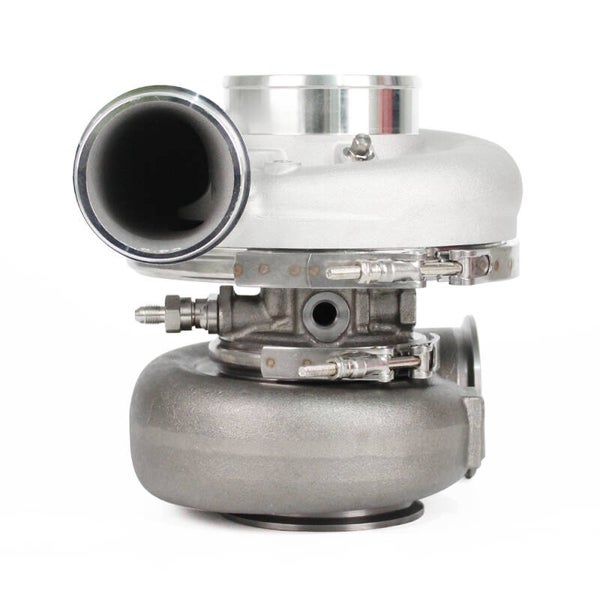

PSR G42-1200 Compact Dual Ball Bearing Turbo (475-1200HP)
€1,740.75
Item number:
102142212
PSR G42-1200 Compact Dual Ball Bearing Turbo (475-1200HP)
This PSR Turbo G42-1200 Compact is a smaller compact G42 Turbo then the standard/regular version. It can handle 475-1200HP.
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 6 Options in Turbine Housing
Description
- Compressor Wheel: 73*91mm
- Turbine Wheel: 82*75mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 3″ hose
- Turbine Outlet: 3.5″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange)
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- 6 Options in Turbine Housing: T4(Open) 1.15 A/R, T4(Divided) 1.15 A/R, T4(Divided) 1.28 A/R, dual v-band 1.01, 1.15 and 1.28 housings
Additional information
Rotation:
- Forward Rotation
- Reverse Rotation
- Forward & Reverse Rotation
Compressor Housing Options:
- Standard
- T51R Mod
- W/O Compressor Housing
Turbine Housing Options:
- 1.15 A/R DUAL V-BAND
- W/O Turbine Housing
- 1.15 A/R T4(Open) INLET V-BAND OUTLET
- 1.15 A/R T4(Divided) INLET V-BAND OUTLET
- 1.28A/R DUAL V-BAND
- 1.28 A/R T4 DIVIDED INLET V-BAND OUTLET
- 1.01 A/R DUAL V-BAND
