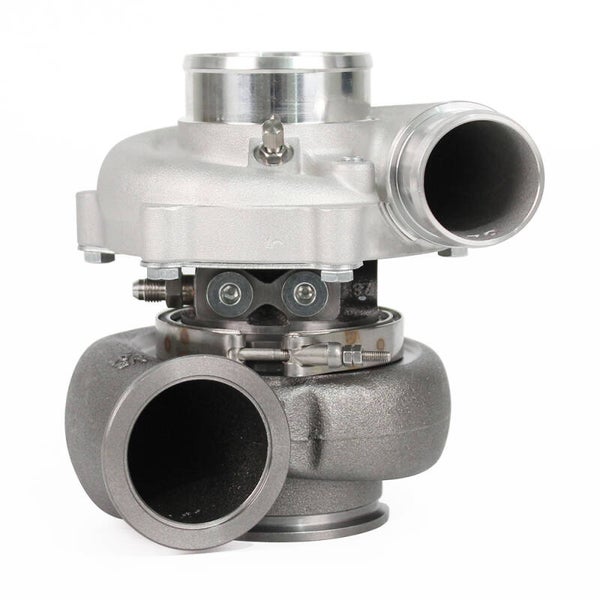

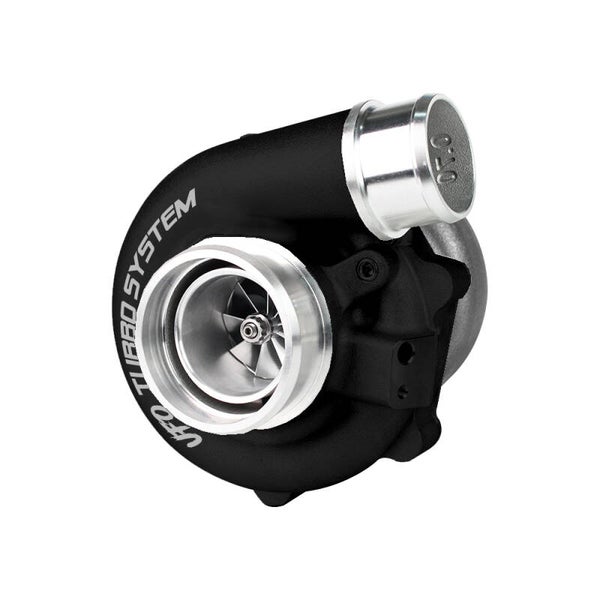

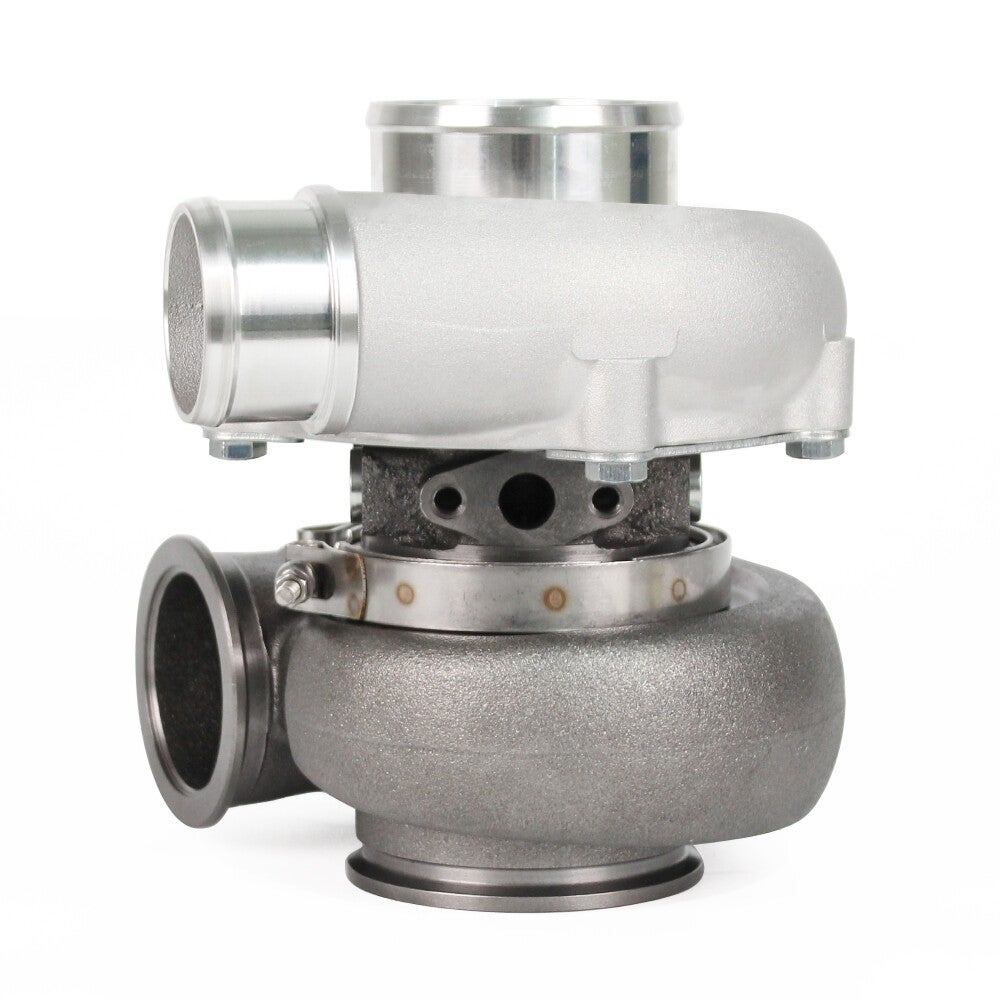

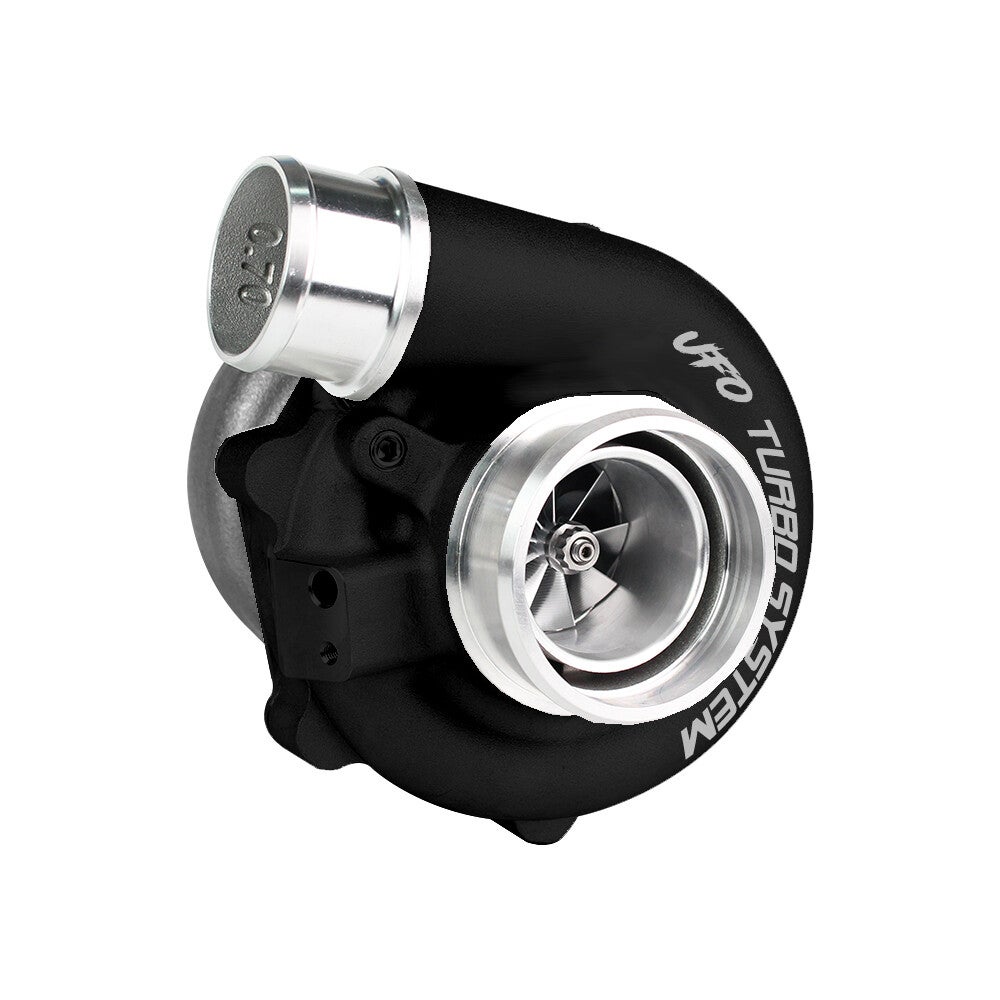

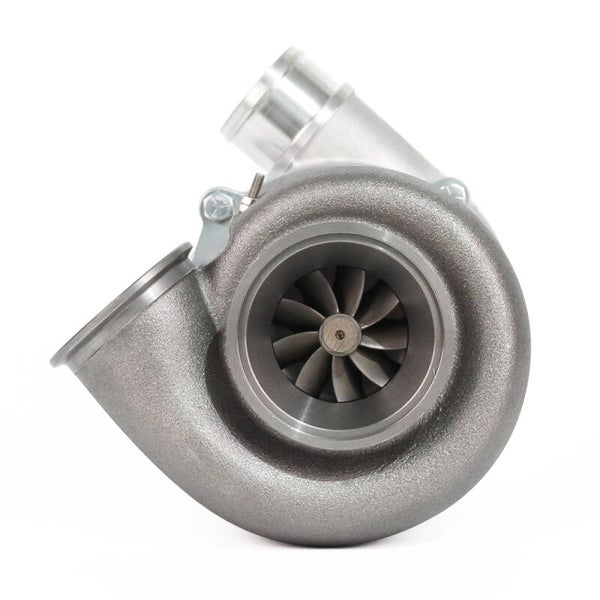

UFO TS G30-660 Dual Ball Bearing Turbo (350-660HP)

UFO TS G30-660 Dual Ball Bearing Turbo (350-660HP)

This TS G30-660 is rated for 350-660HP.

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion.
• 9 Blade G-Aero billet compressor wheel with extended tapered tip technology. (Billet OR Point Milled)
• 9 Blade G-Aero Inconel 713c turbine wheel.
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port.

Description

• Compressor Wheel: 54*67mm
• Turbine Wheel: 60*55mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T3, T4 or V-BAND
• Turbine Outlet: 3'' V-Band
• Water Ports: 2-M14 X 1.5
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
• Oil Outlet: Std T3 Oil Drain Flange

Additional information

Compressor Housing Options:

• W/O Compressor Housing
• Standard

Turbine Housing Options:

• T3  0.82A/R
• T4 .82 V-Band
• Dual Vband 0.72A/R
• Dual Vband 1.01A/R
• Dual Vband 1.21A/R
