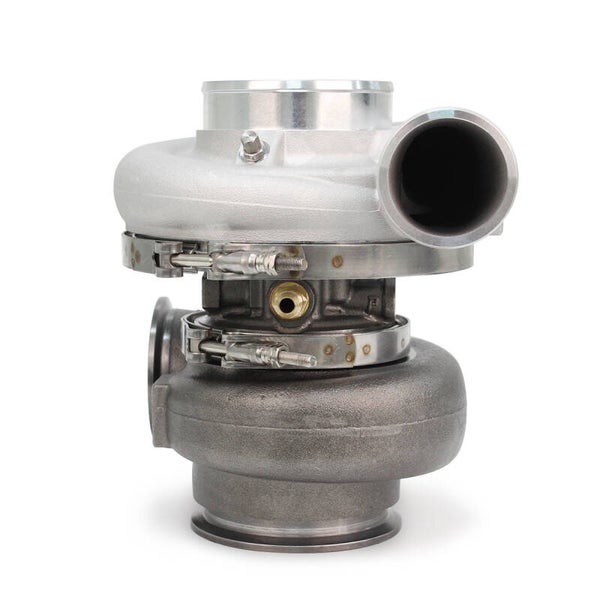

UFO TS G40-900 Dual Ball Bearing Turbo (500-900HP)
UFO TS G40-900 Dual Ball Bearing Turbo (500-900HP)
This Turbo G40-900 is rated for 500-900HP.
Suitable for engine capacities 2.5L-5.5L due to its dual setup possibilities.
Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
9 Blade G-Aero billet compressor wheel with extended tapered tip technology (Billet OR Point Milled)
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Compressor Wheel: 62*88mm
Turbine Wheel: 77*70mm
Compressor Inlet: 4” Hose
Compressor Outlet: 3” V-Band
Turbine Inlet:T4 & V-Band
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
Oil Drain: Std T3
2 options for turbine housing:

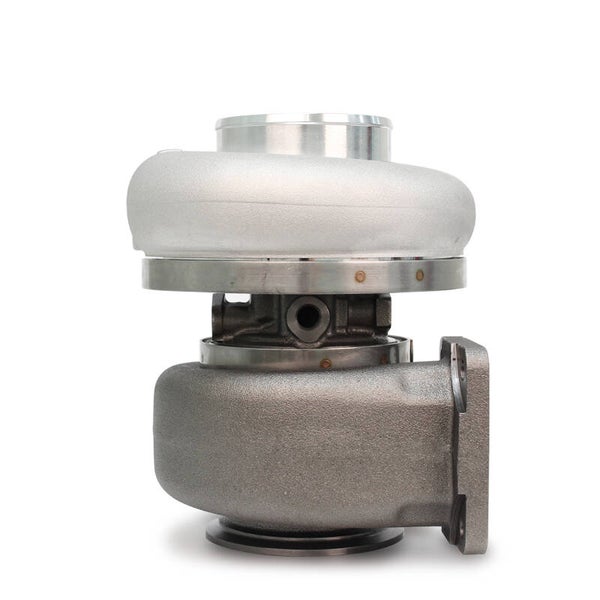

T4 Twin Scroll 0.85A/R, 0.95A/R, 1.06A/R, 1.19A/R

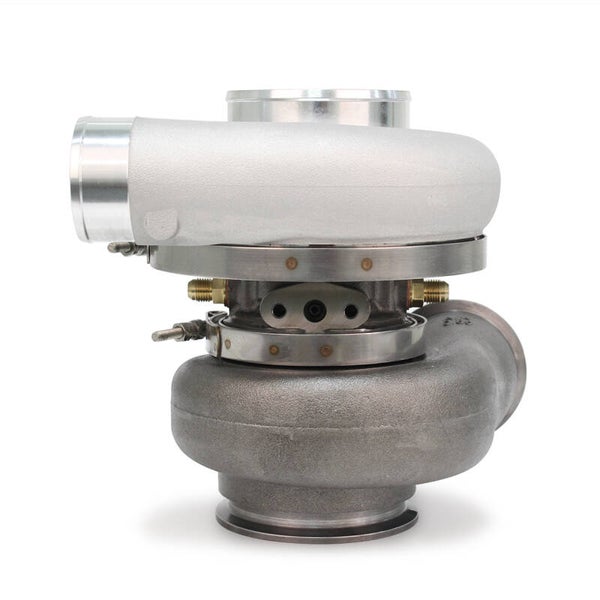

Dual vband 0.85.
Additional information
Compressor Housing Options:
T51R Mod
